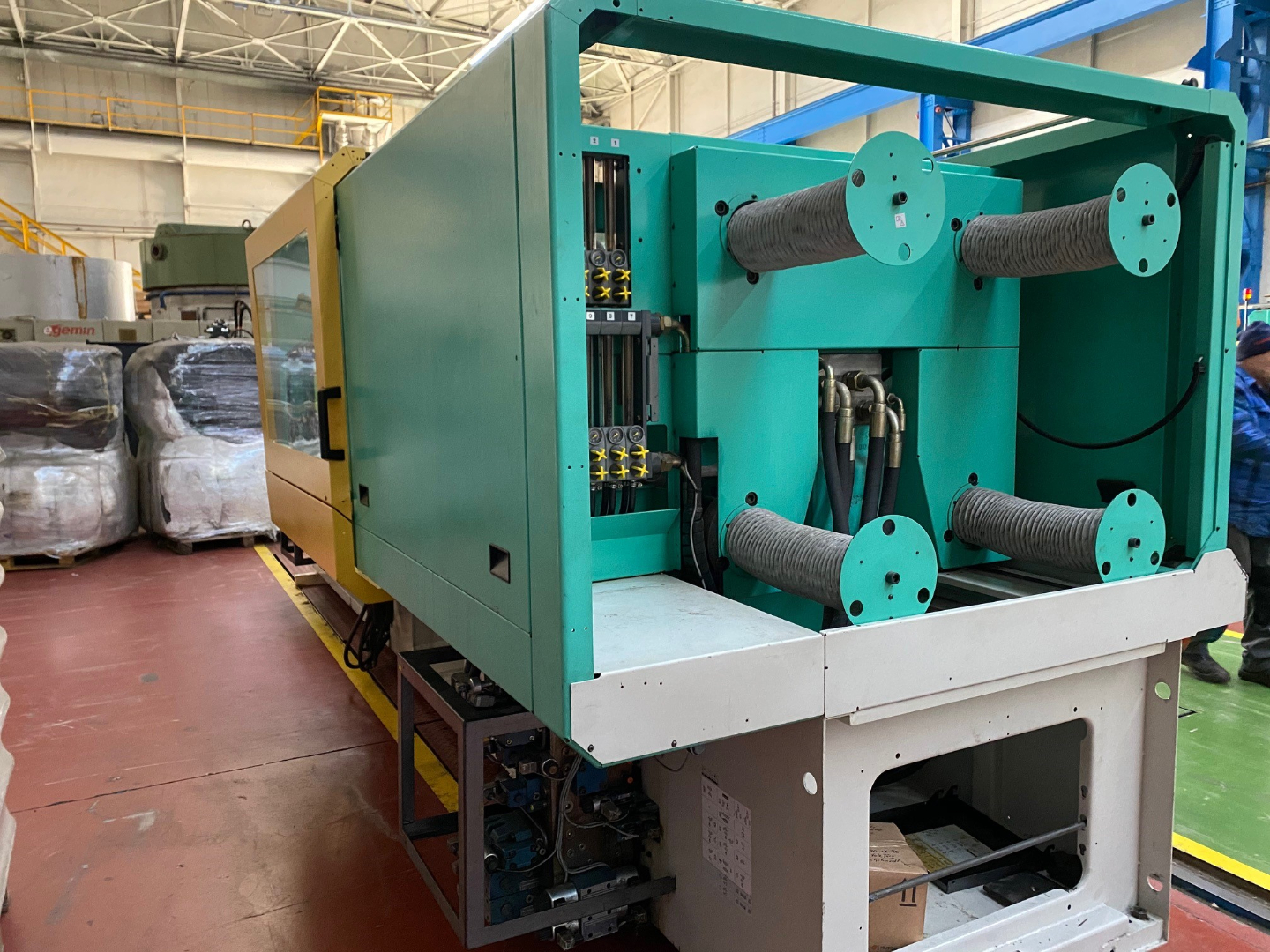

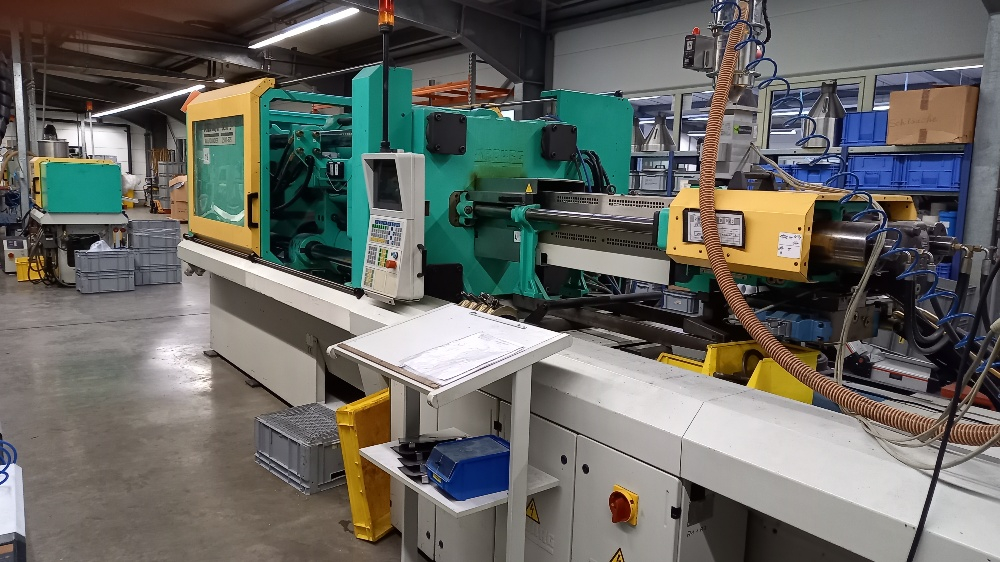

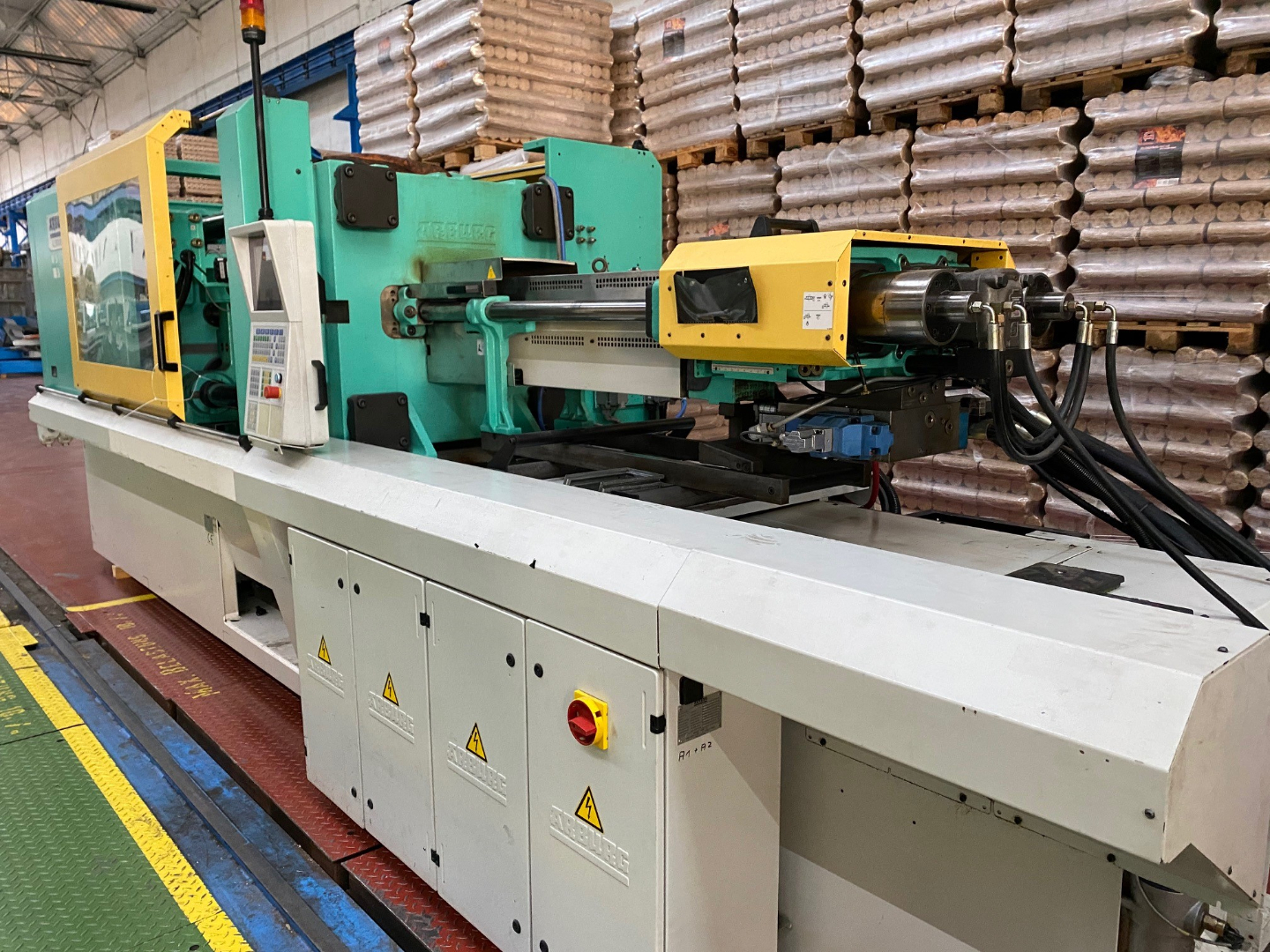

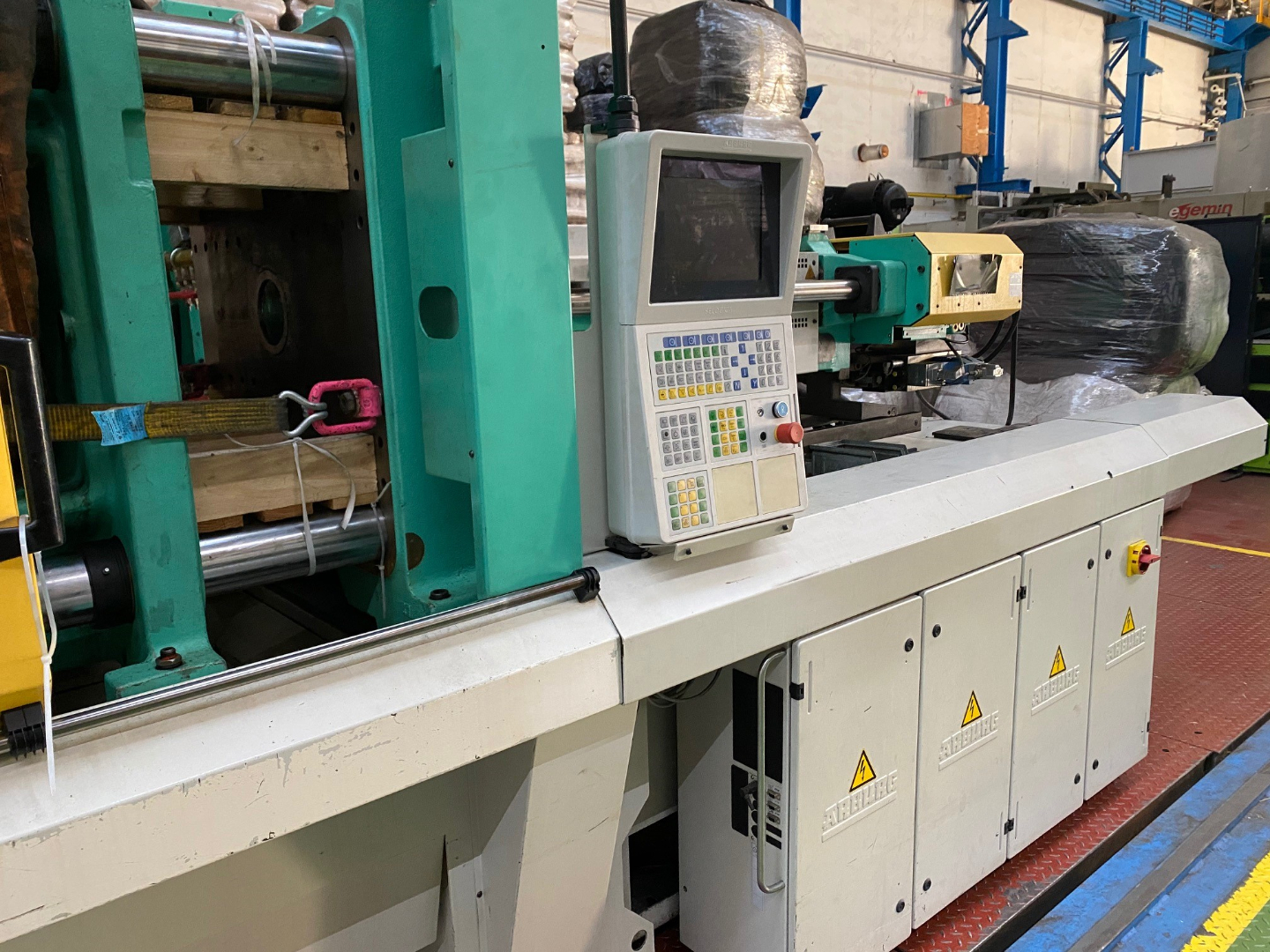

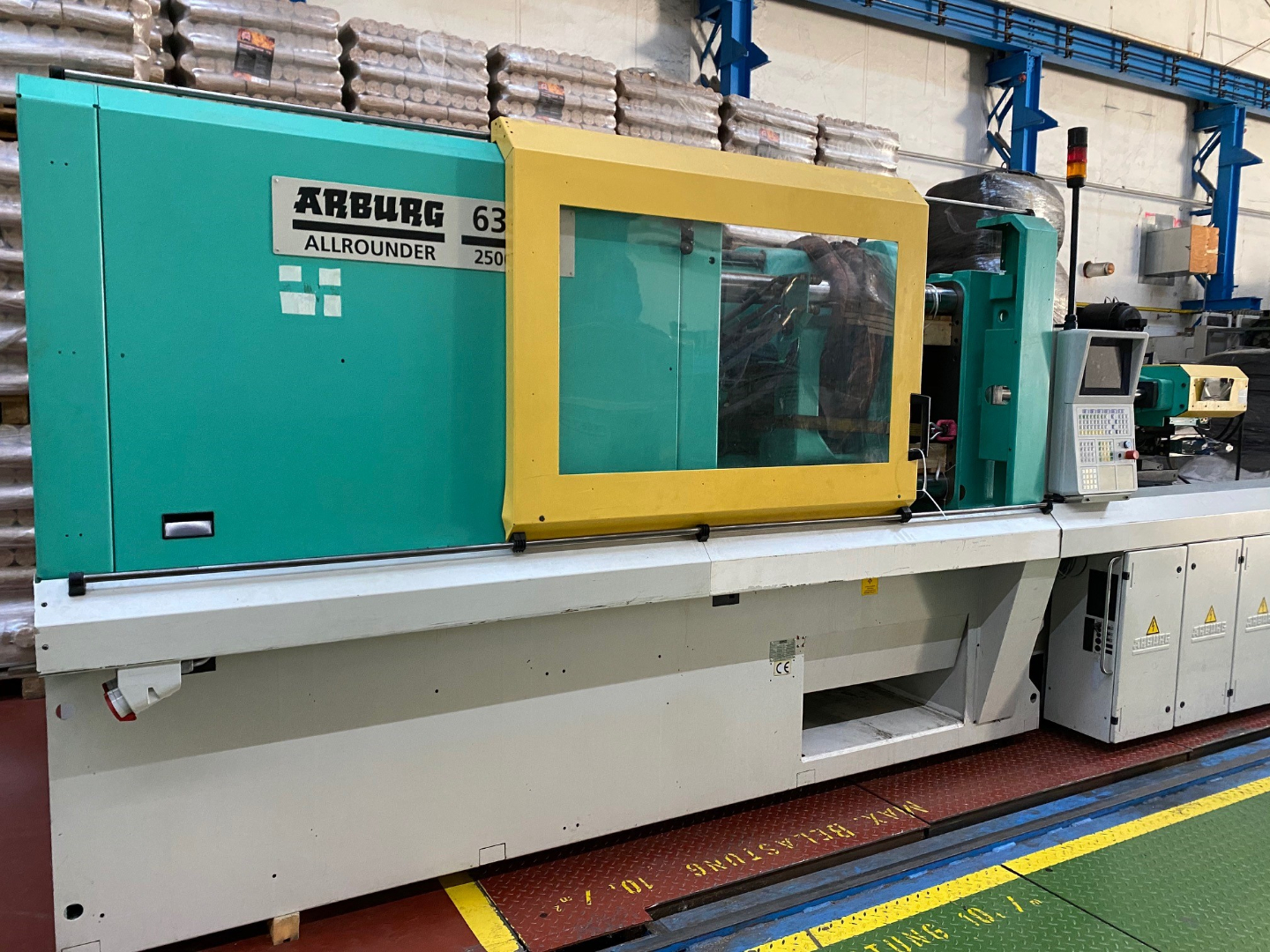

Used ARBURG 630 S 2500-675

Producer

ARBURG

Type

630 S 2500-675

Year

2001

Clamping unit

Clamping force

250 ton

Opening stroke

600 mm

Distance between tie bars

630 x 630 mm

Mould height min.

300 mm

Platen size (h x v)

900 x 900 mm

Injection unit

Screw diameter

50 mm

Injection volume

353 cm³

Shot weight

322 g

Injection pressure

2080 bar

Measurements and weight

Dimensions

6,2 x 1,9 x 2,2 m

Machine weight

14000 kg

Additional information & extras

Core pull

2 pcs

Robot port

Euromap 12
