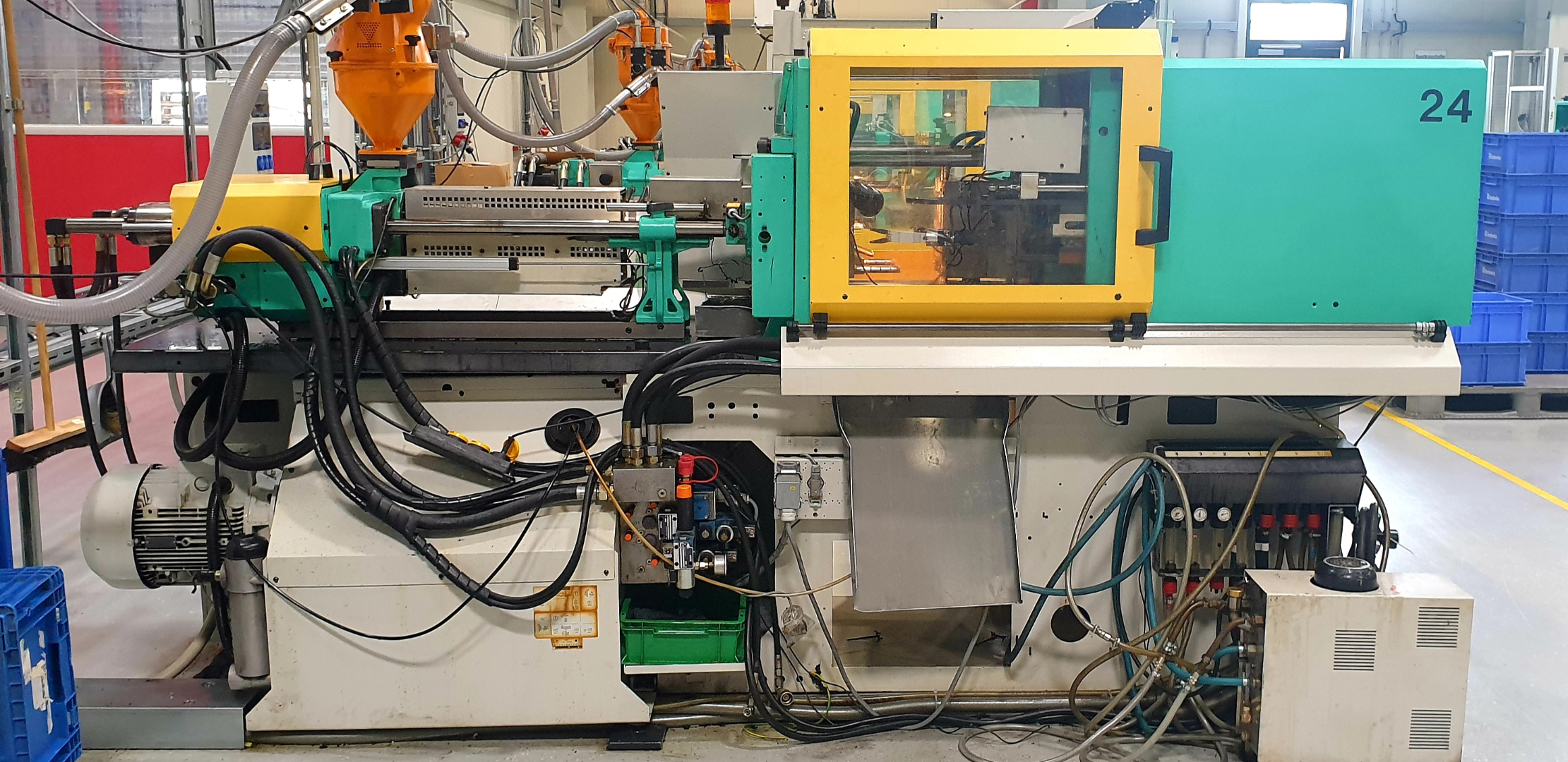

Used ARBURG 320S 500-150

Producer
ARBURG
Type
320S 500-150
Year
2000

Clamping unit
Clamping force
50 ton
Opening stroke
350 mm
Distance between tie bars
320 x 320 mm
Mould height min.
225 mm
Platen size (h x v)
472 x 472 mm

Injection unit
Screw diameter
30 mm
Injection volume
78 cm³
Shot weight
71 g
Injection pressure
2210 bar

Measurements and weight
Dimensions
3,6 x 1 x 1,75 m
Machine weight
2250 kg

Additional information & extras
Core pull
1 pcs

Robot
Producer
Arburg-Angusspicker
