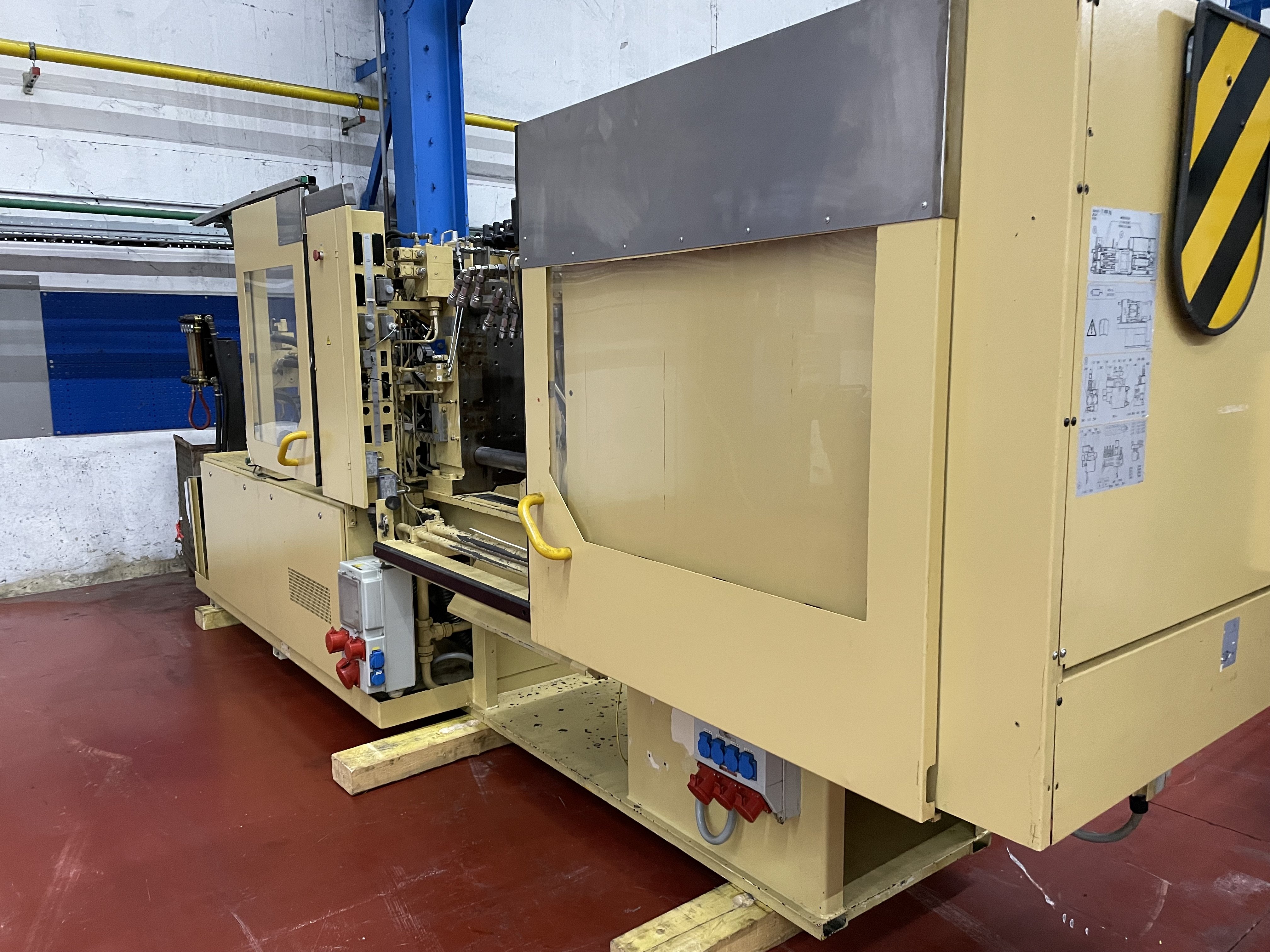

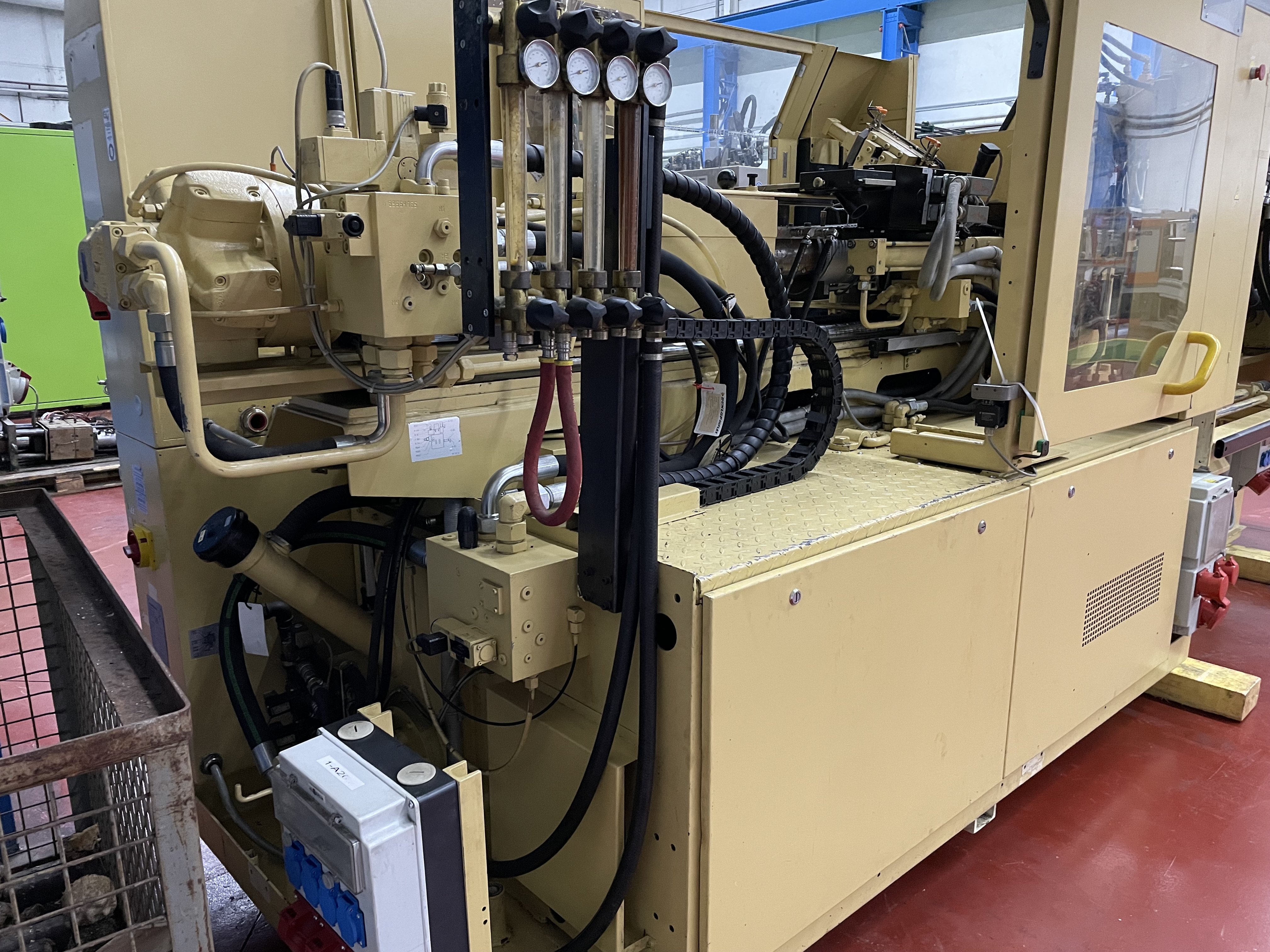

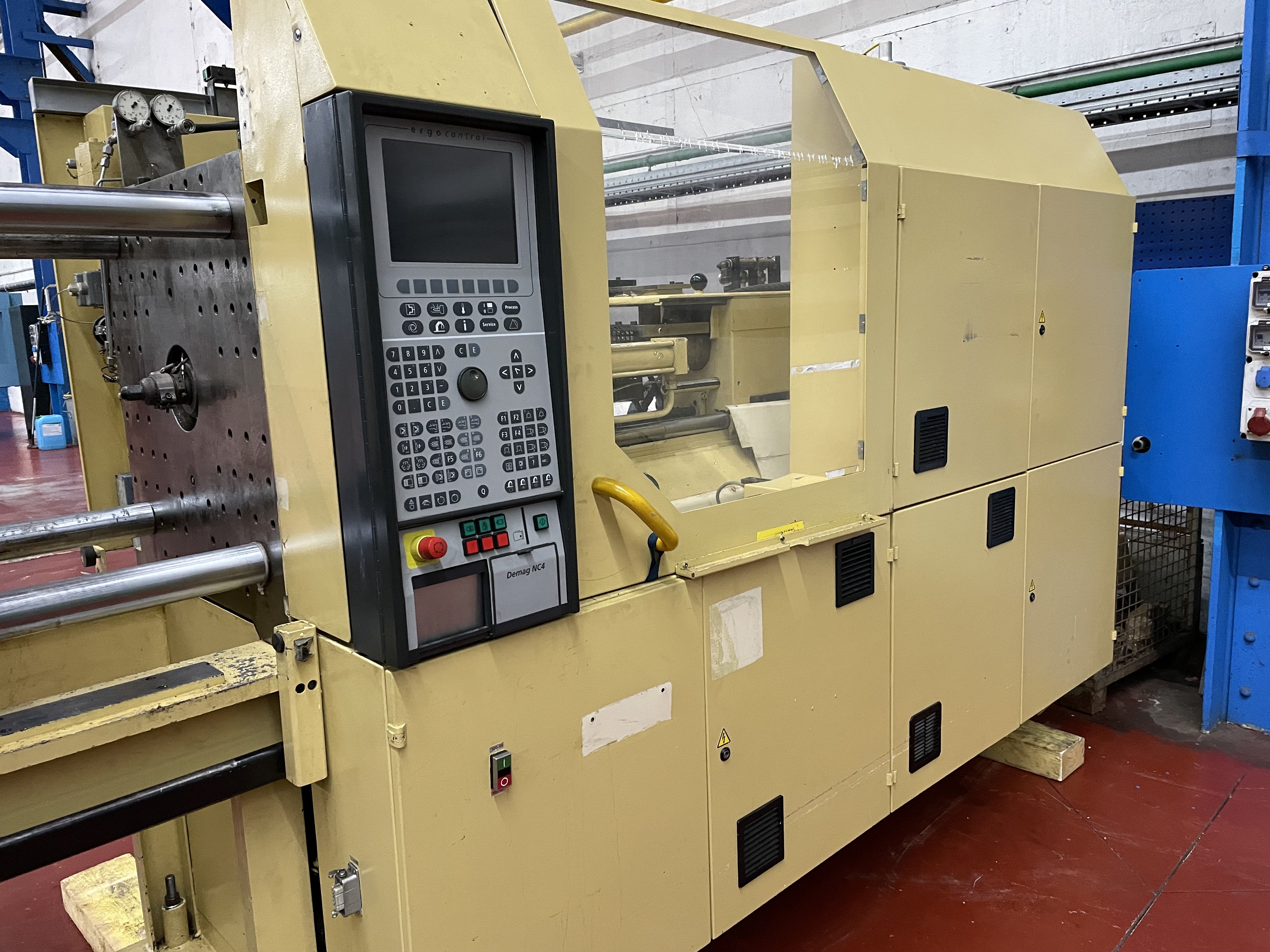

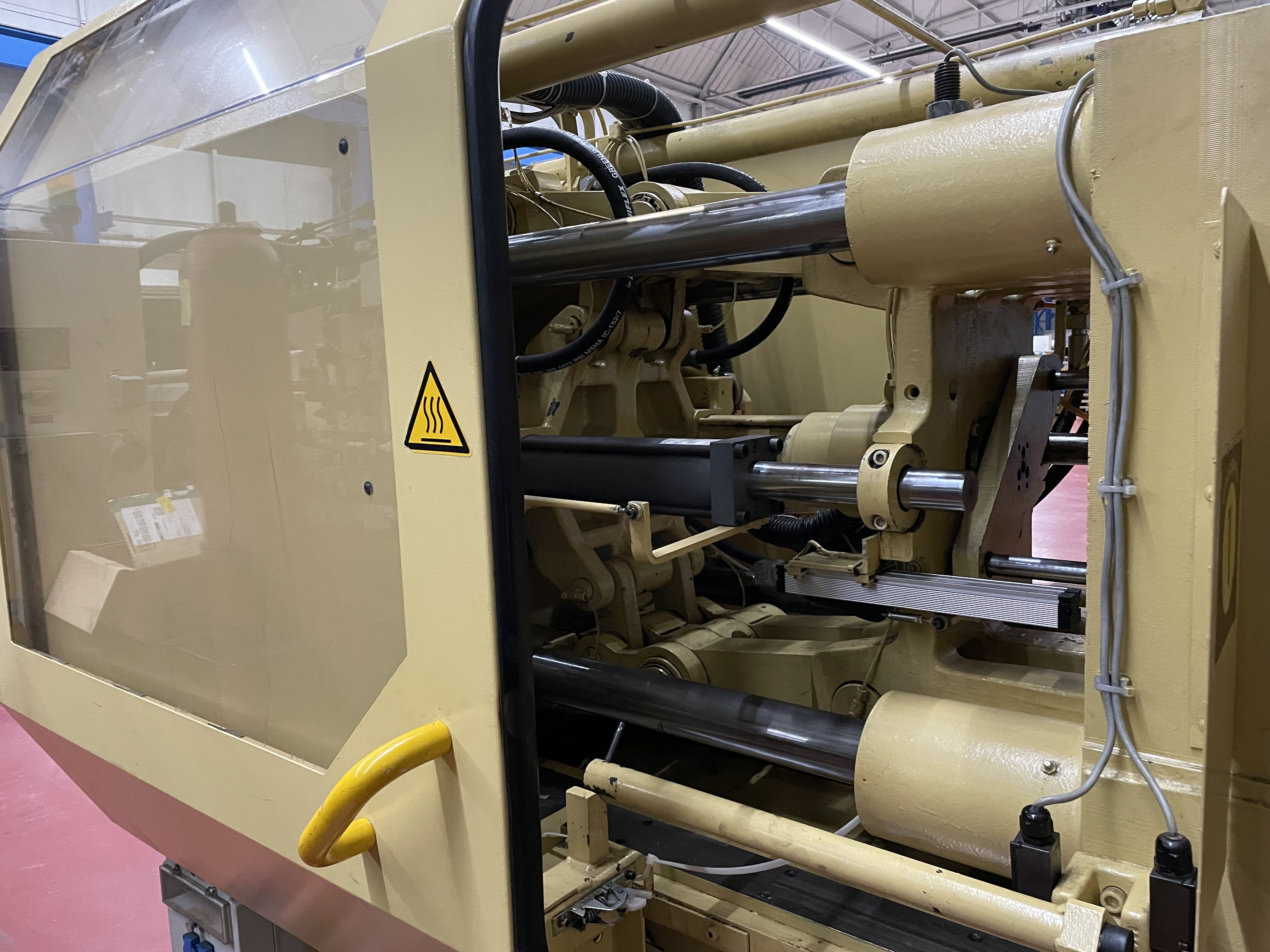

Used DEMAG Ergotech-System 1500-610

Producer

DEMAG

Type

Ergotech-System 1500-610

Year

1998

Clamping unit

Clamping force

150 ton

Opening stroke

500 mm

Distance between tie bars

500 x 500 mm

Mould height min.

250 mm

Mould height max.

560 mm

Platen size (h x v)

750 x 750 mm

Injection unit

Screw diameter

50 mm

Injection volume

399 cm³

Shot weight

360 g

Injection pressure

1598 bar

Measurements and weight

Dimensions

5,2 x 1,65 x 2,2 m

Machine weight

7000 kg
