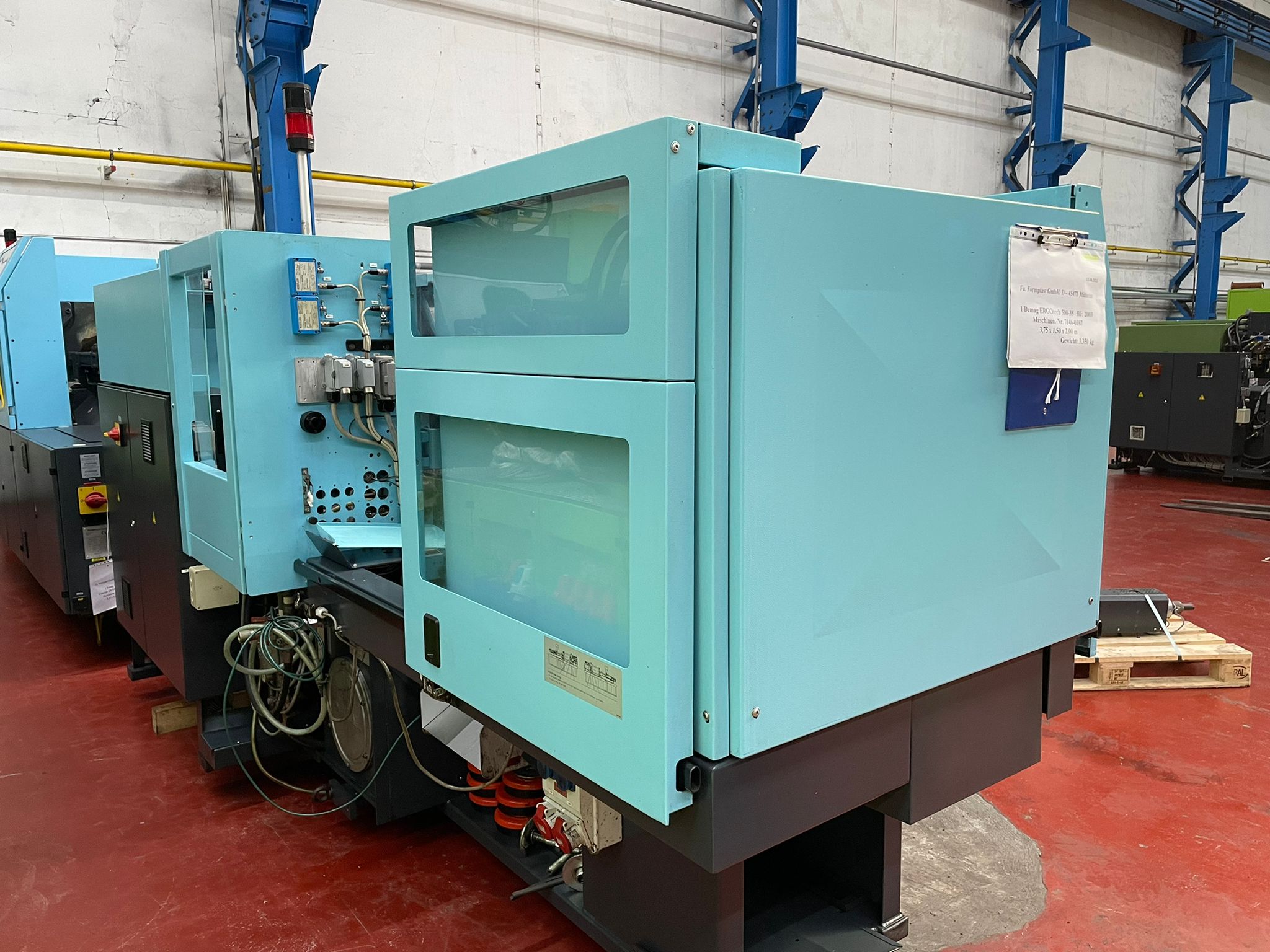

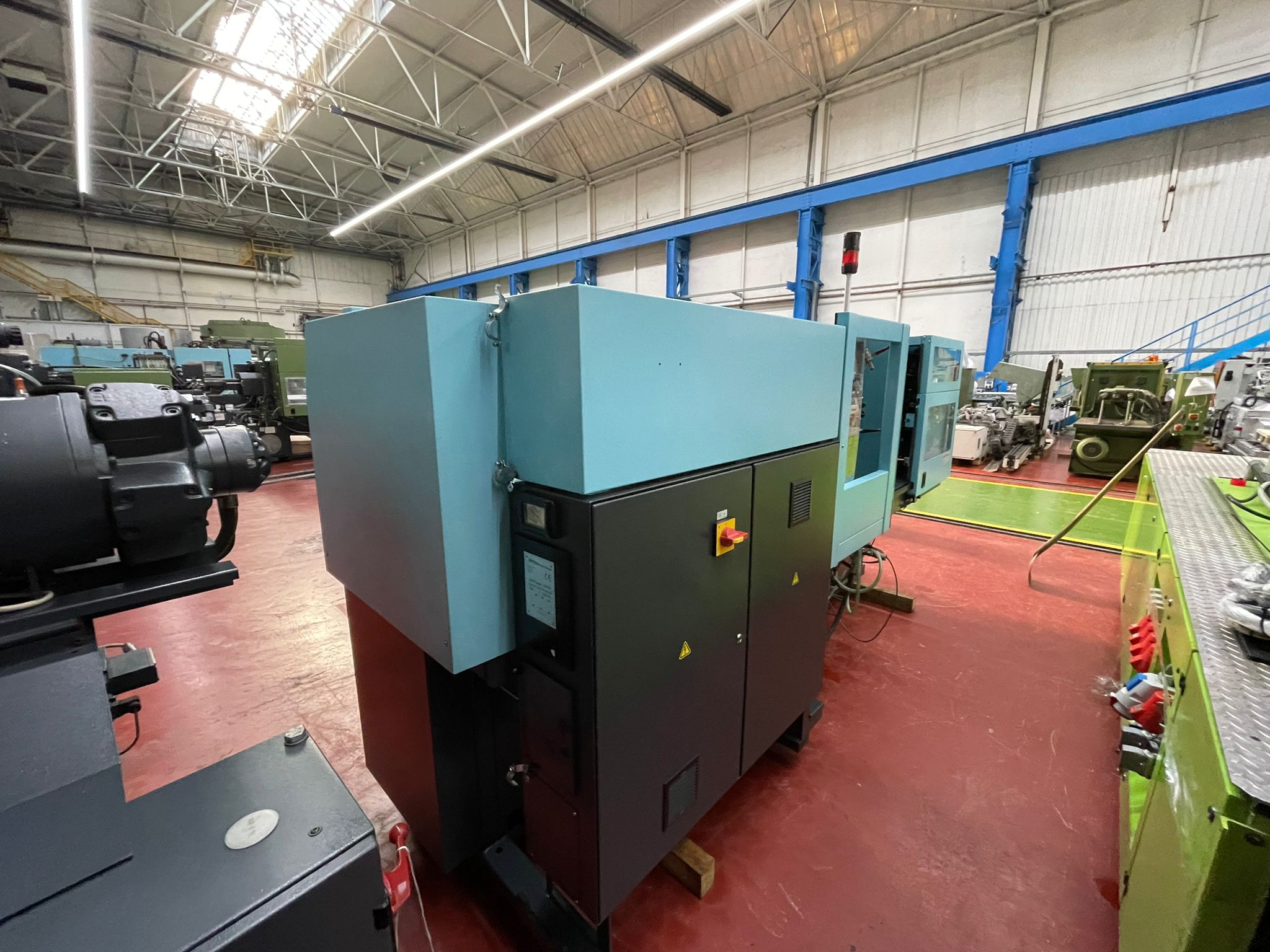

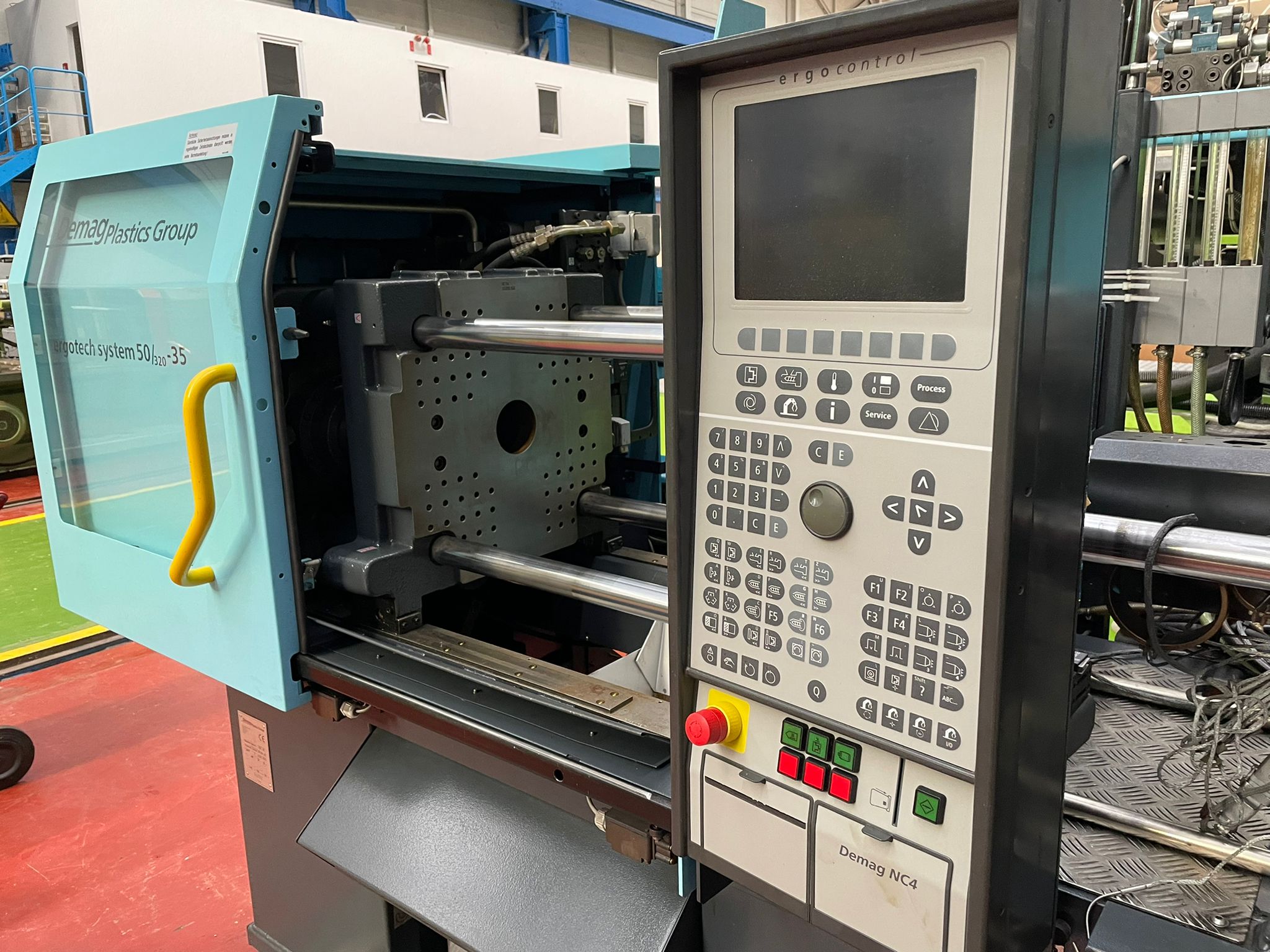

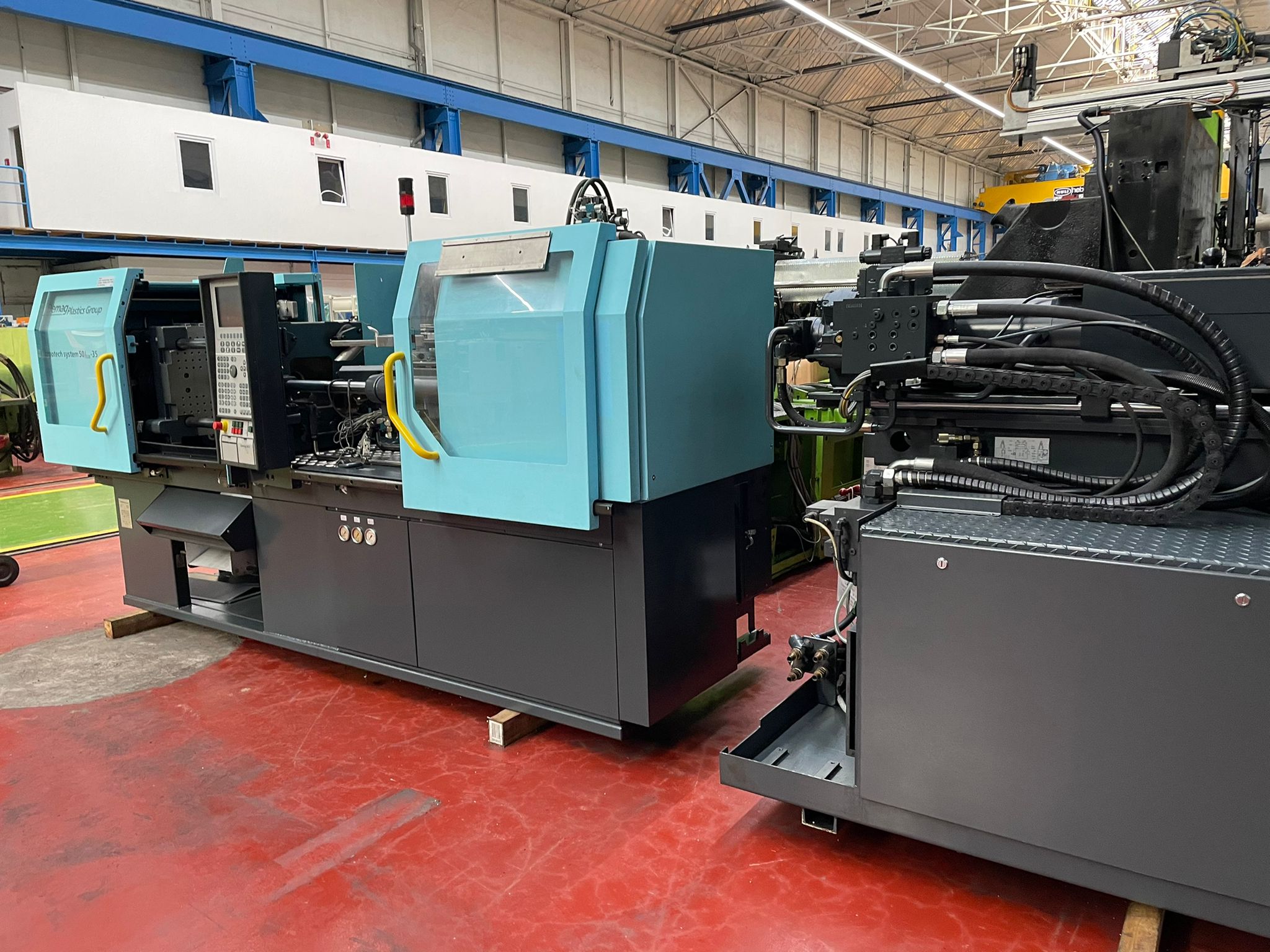

Used DEMAG Ergotech system 50/320-35

Producer
DEMAG
Type
Ergotech system 50/320-35
Year
2003

Clamping unit
Clamping force
50 ton
Opening stroke
400 mm
Distance between tie bars
320 x 320 mm
Platen size (h x v)
540 x 530 mm

Injection unit
Screw diameter
22 mm
Injection volume
34 cm³
Shot weight
30 g
Injection pressure
1570 bar

Measurements and weight
Dimensions
3,7 x 1,4 x 2 m
Machine weight
3350 kg

Additional information & extras
Core pull
1 pcs
Air valve
1 pcs
Hot runner systems
9 Zonen pcs.
Robot port
Euromap 12
