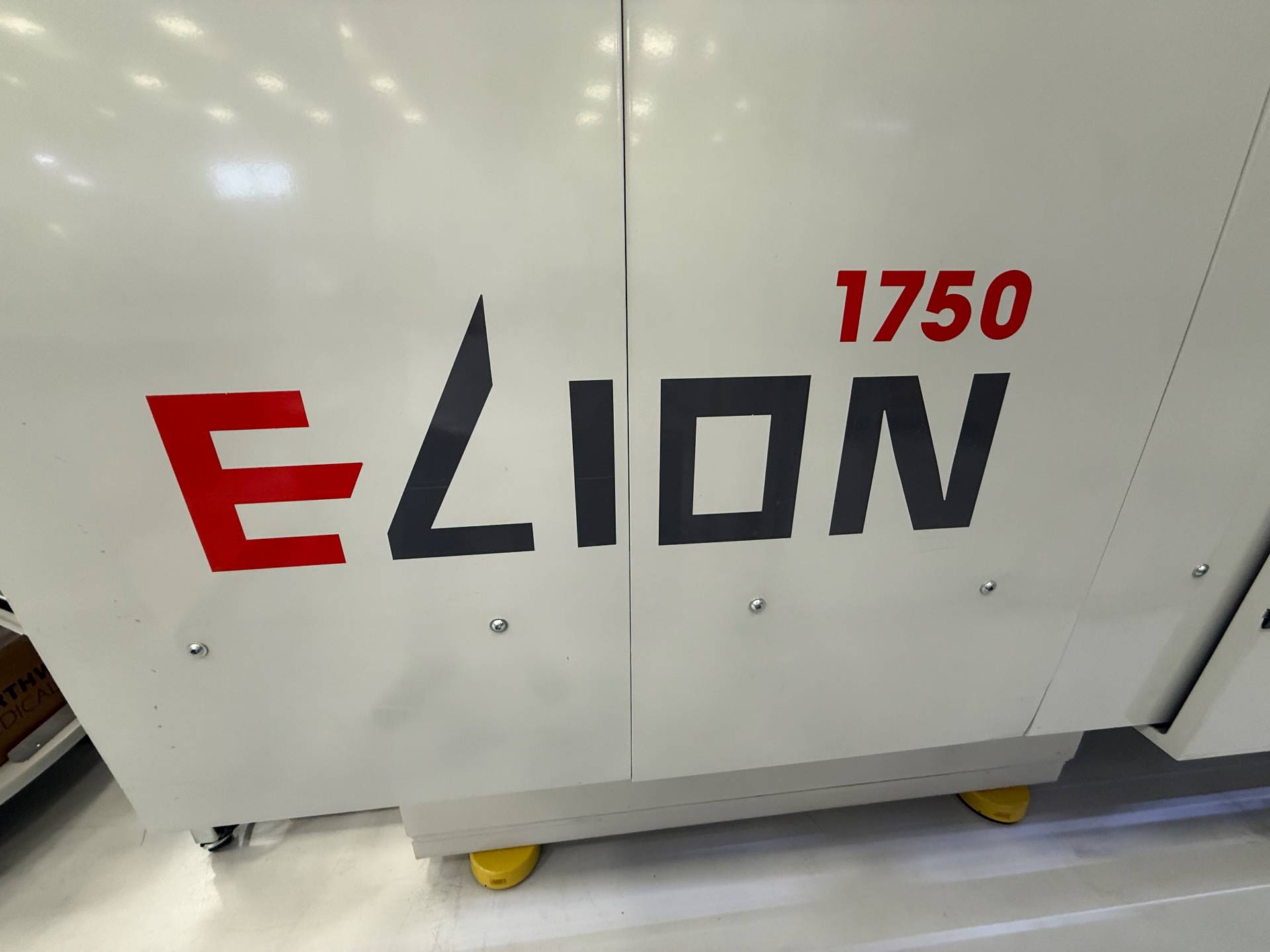

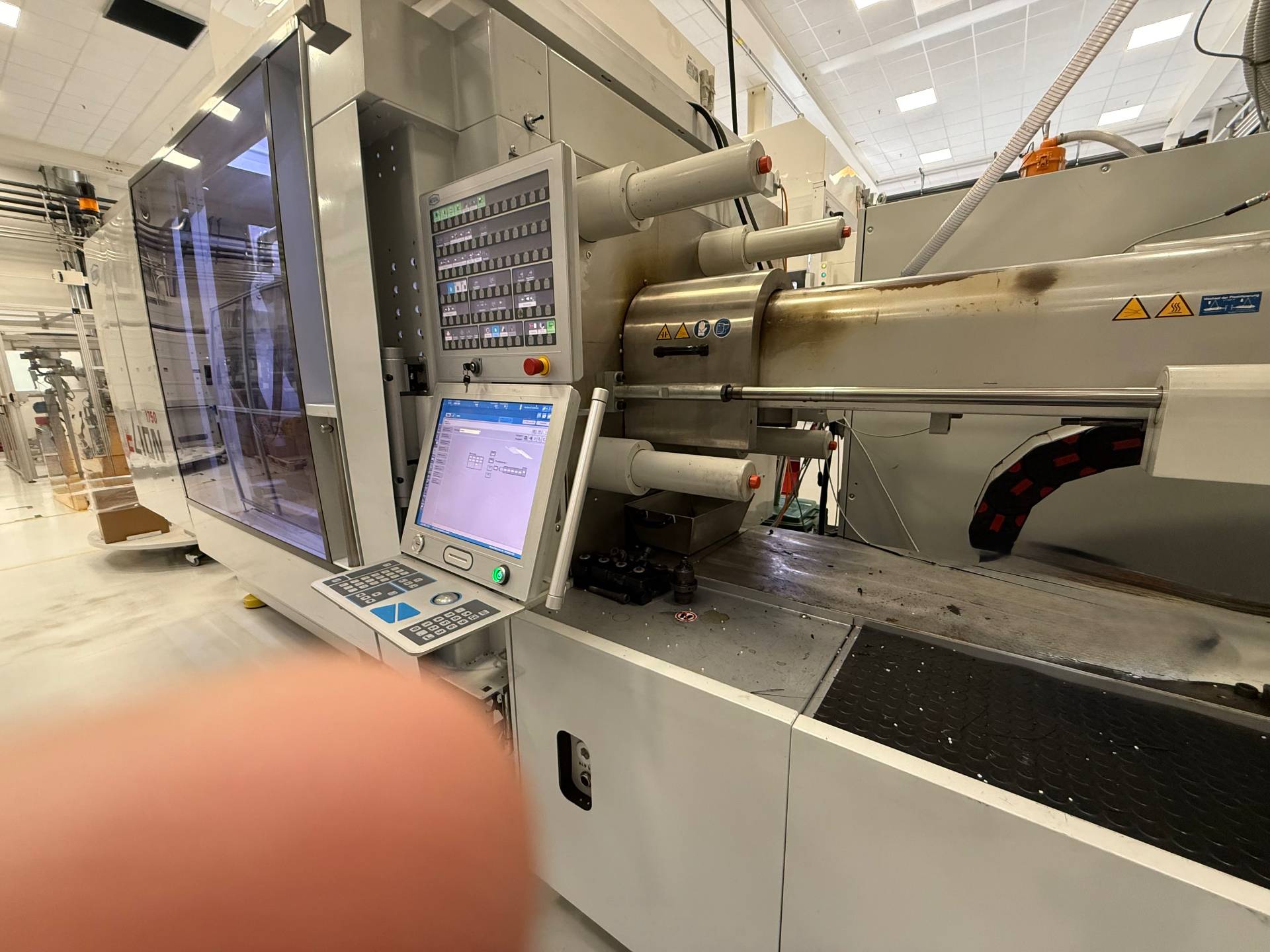

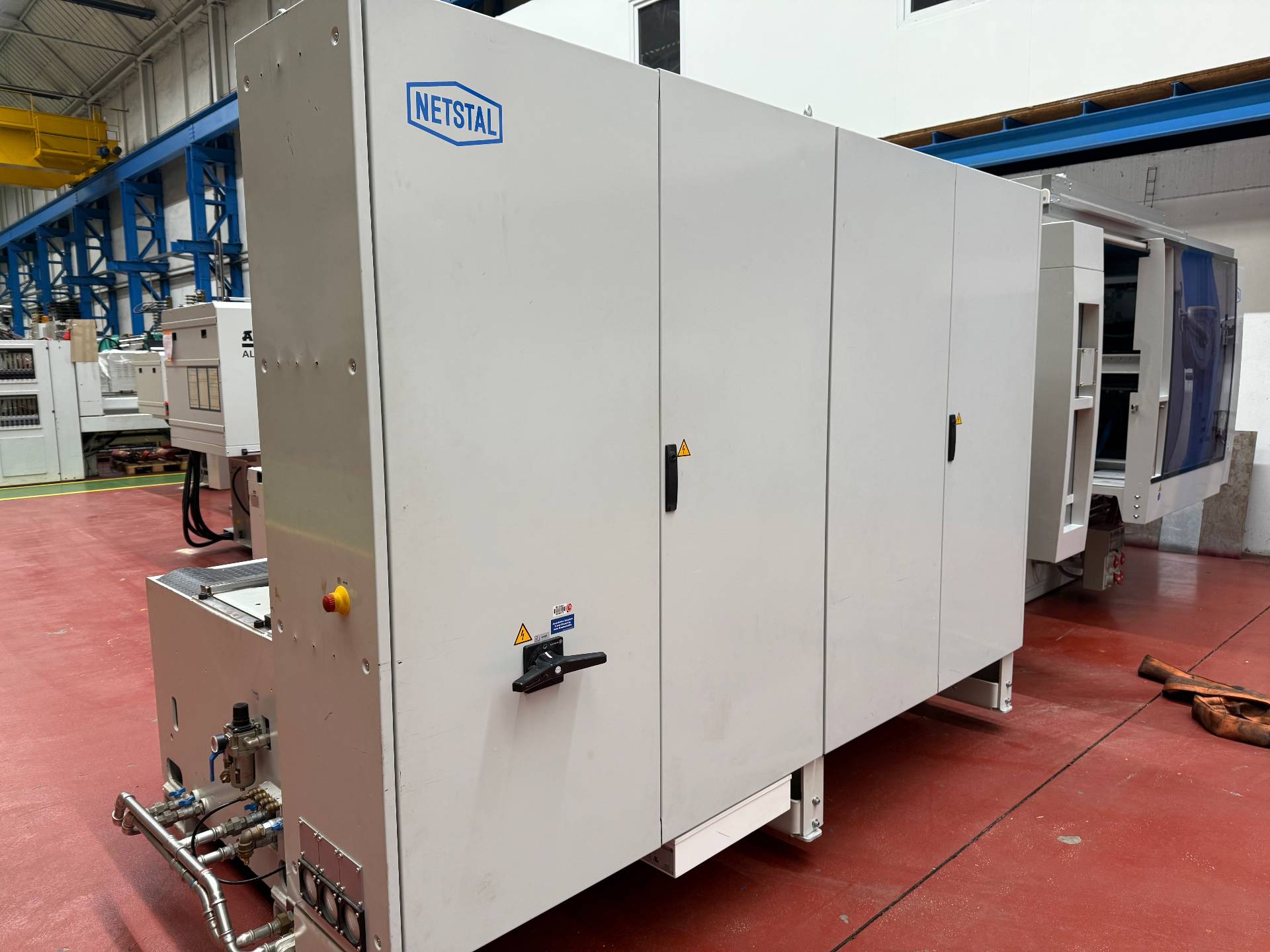

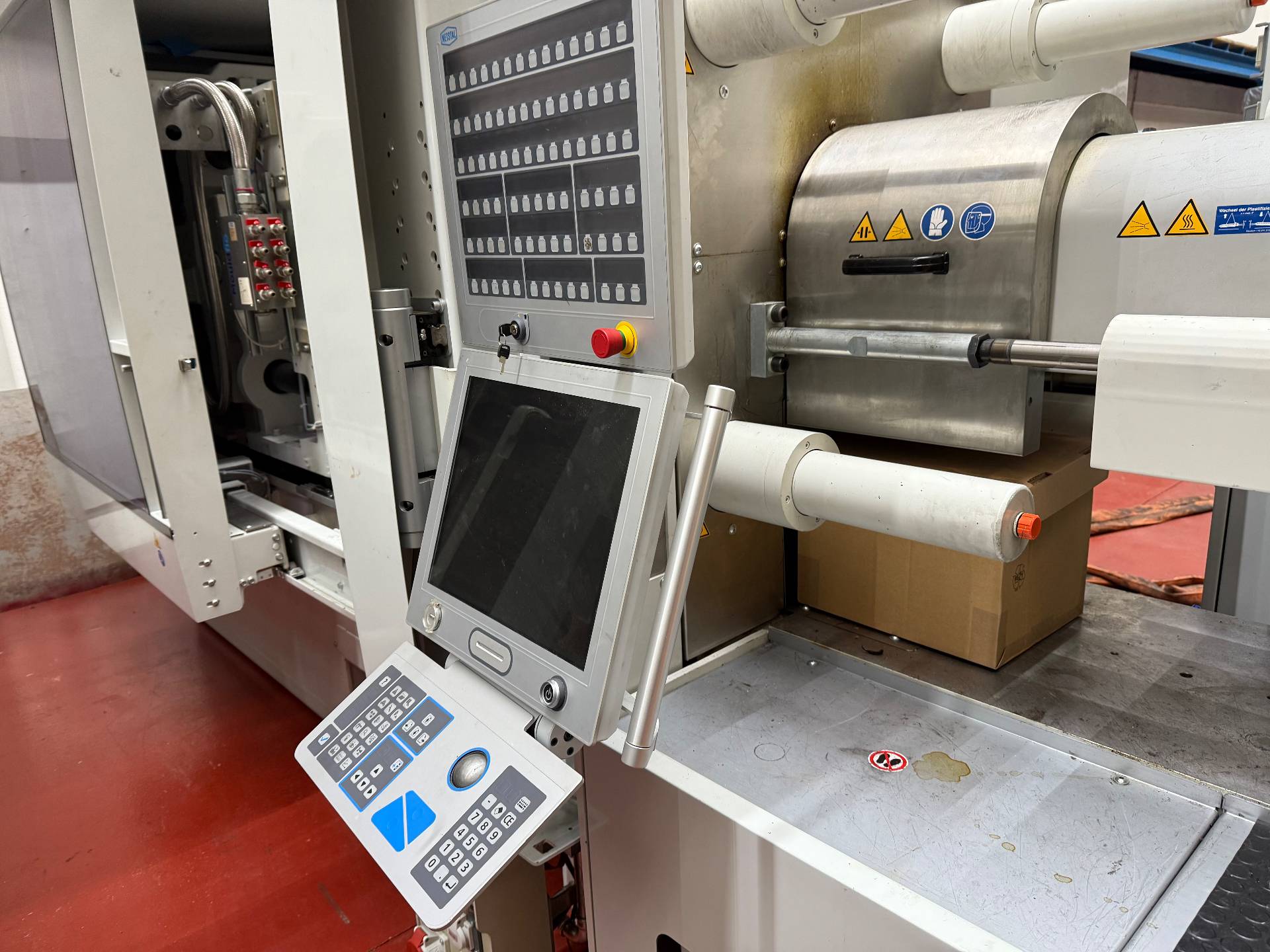

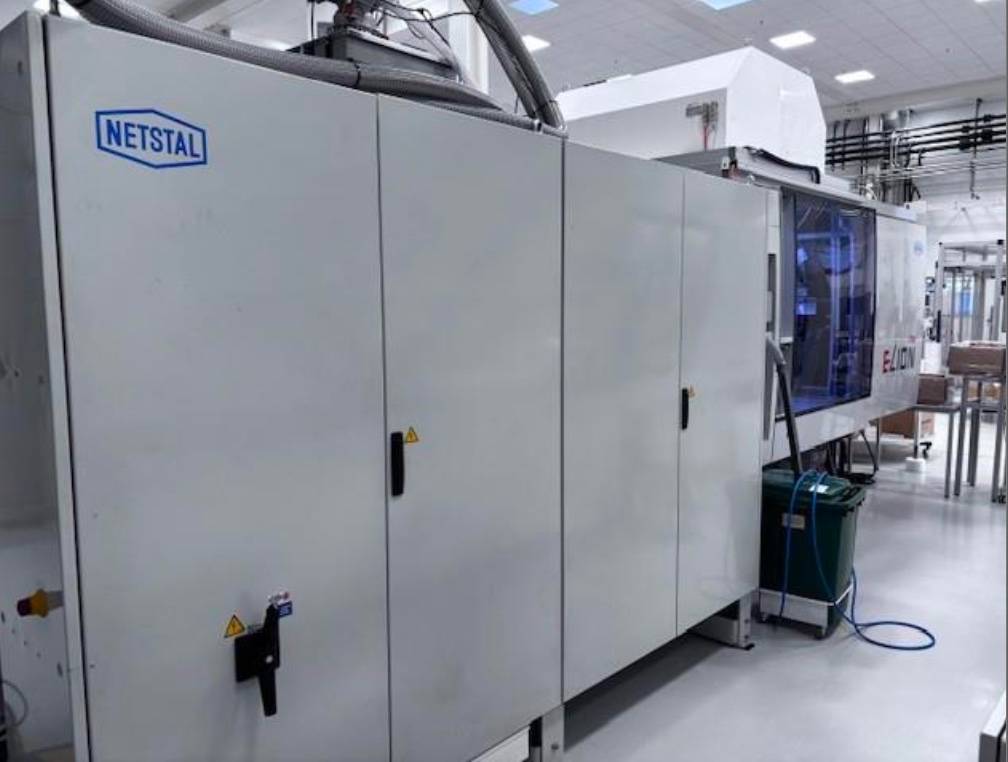

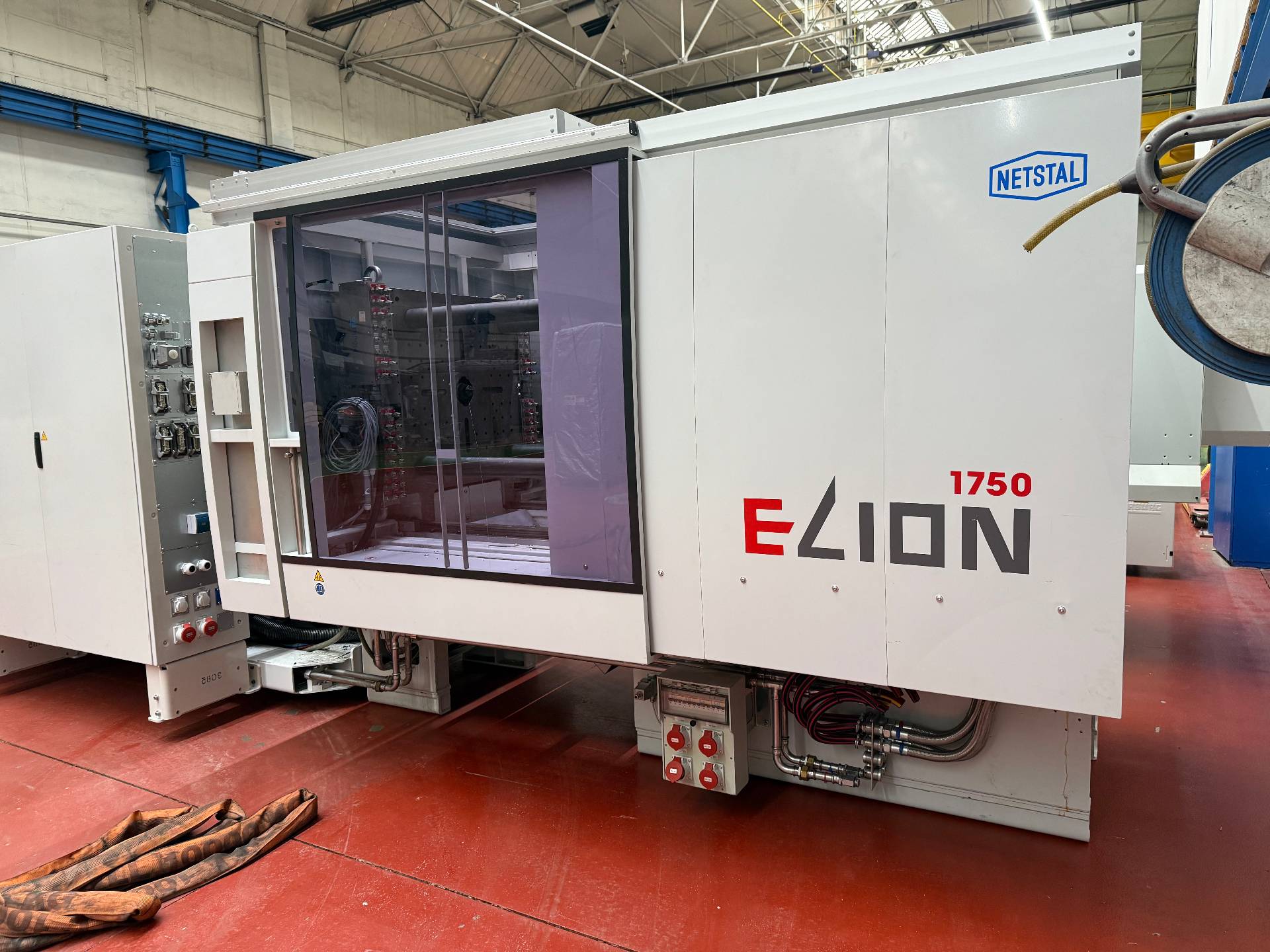

Used NETSTAL Elion 1750-510 M Electric machines
Producer
NETSTAL
Type
Elion 1750-510 M Electric machines
Year
2015

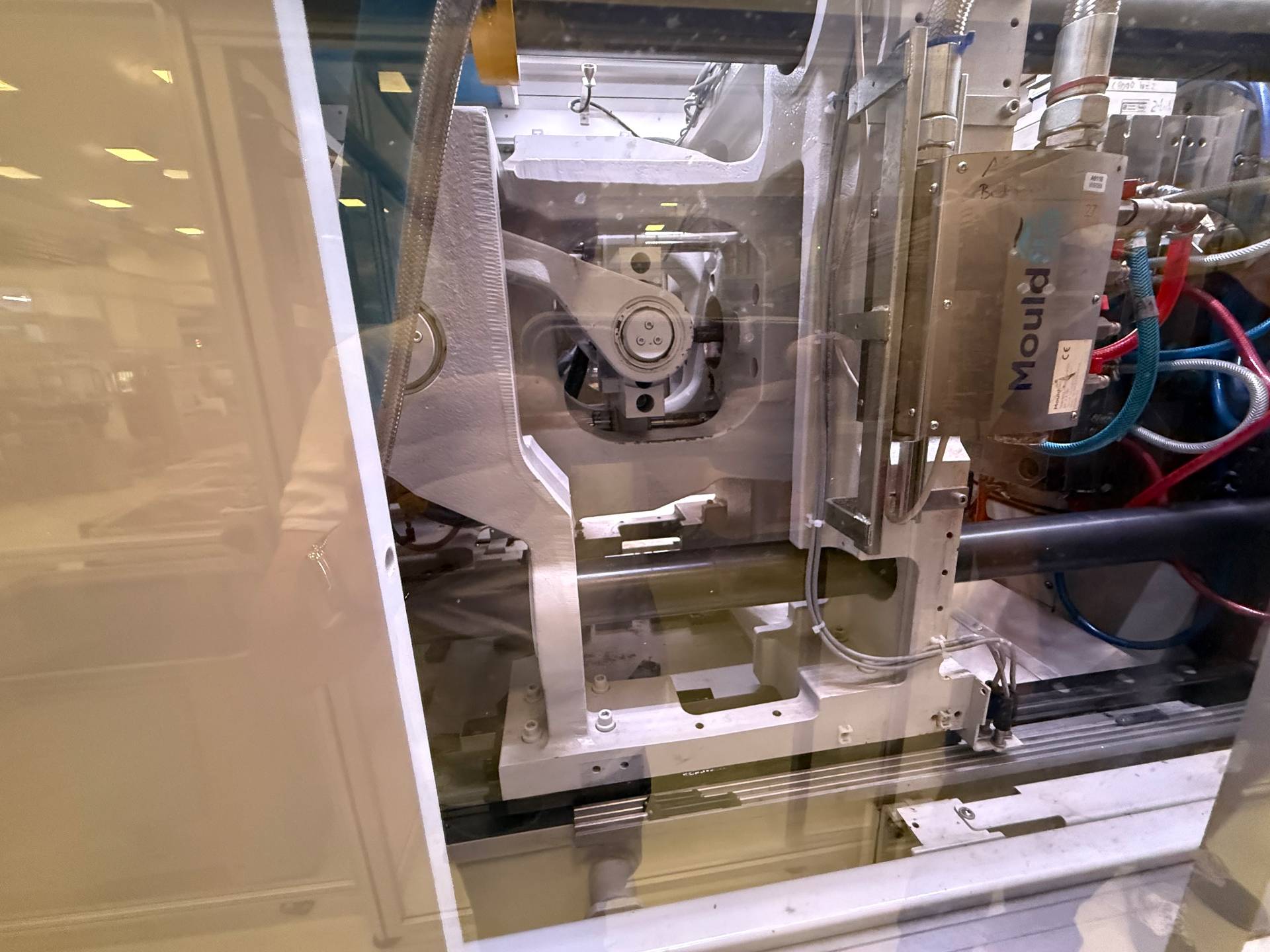

Clamping unit
Clamping force
175 ton
Opening stroke
450 mm
Distance between tie bars
560 x 560 mm
Mould height min.
500 mm
Mould height max.
800 mm
Platen size (h x v)
830 x 845 mm
Injection unit
Screw diameter
40 mm
Injection volume
201 cm³
Shot weight
193 g
Injection pressure
2400 bar
Measurements and weight
Dimensions
7,1x2,2x2,0 m
Machine weight
12750 kg
