Used SEPRO 5 T25

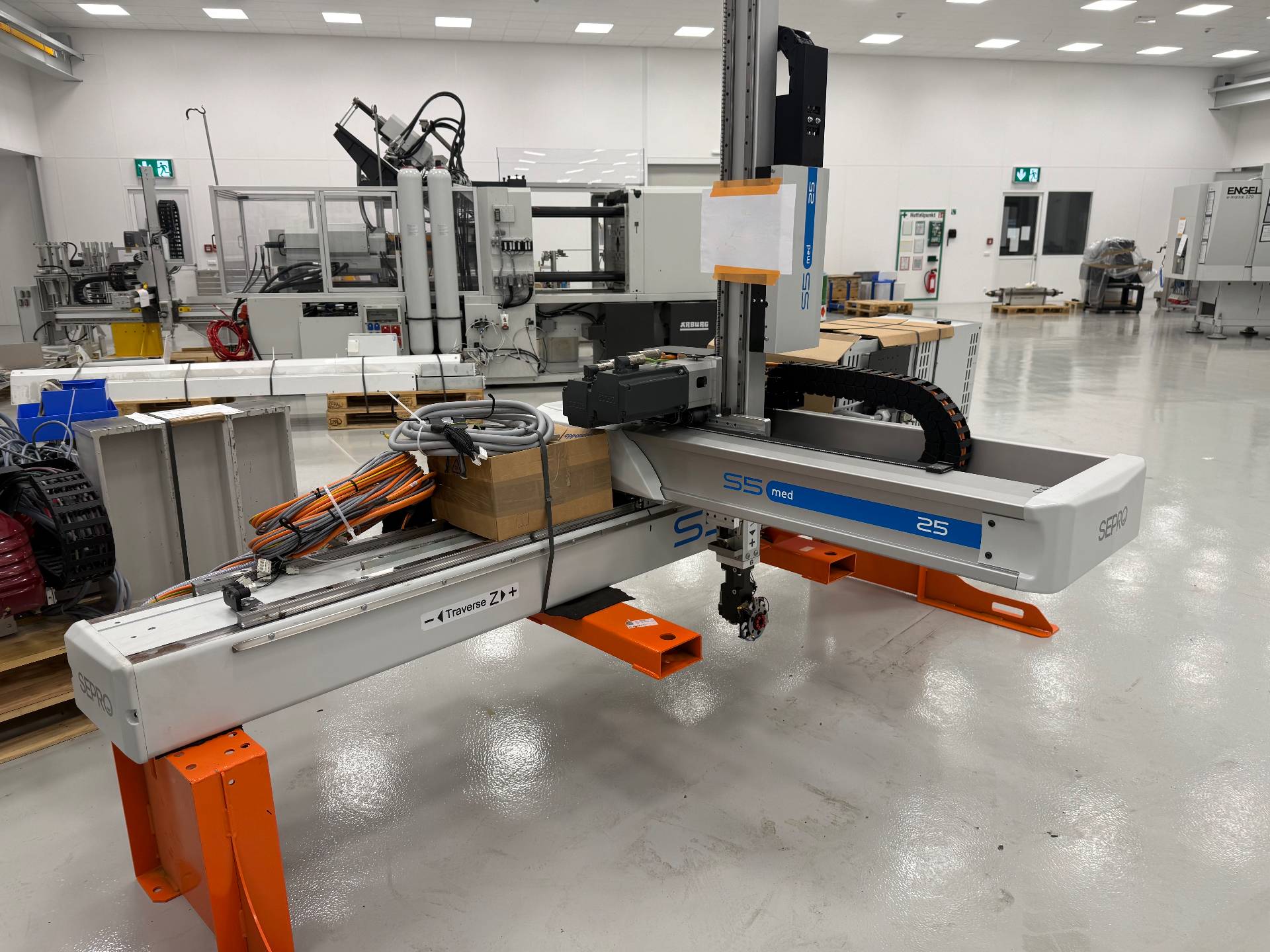

SEPRO S5-25 med – 3-Axis Servo Linear Robot

* Manufacturer: SEPRO Robotique S.A.S. (France)
* Model: S5-25 med
* Year of manufacture: 2022

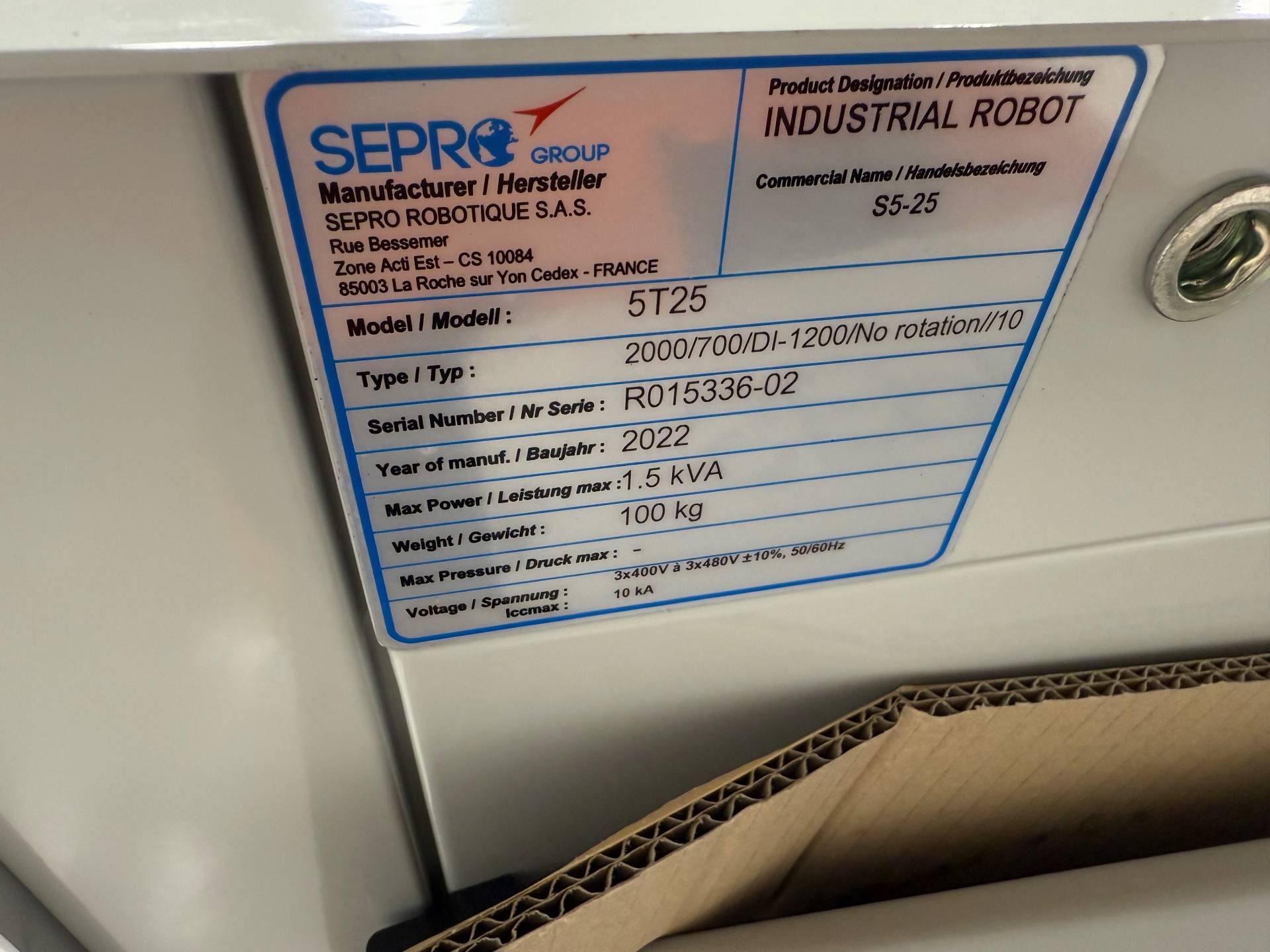

* Serial number: R015336-02
* Condition: Very good and clean condition
* Application: Injection moulding automation / part removal robot
Technical Specifications

Description Value
Robot type 3-axis servo linear robot
X-axis (Traverse) 2000 mm
Y-axis 700 mm
Vertical stroke 1200 mm
Rotation No rotation
Payload class approx. 10 kg
Control system SEPRO Visual 2
Voltage 3x400V – 3x480V
Frequency 50/60 Hz
Max. power 1.5 kVA
Weight approx. 100 kg
Series S5 med

Description

The SEPRO S5-25 med is a high-performance 3-axis servo linear robot designed for automated part removal and handling applications on injection moulding machines.

The robot is in very good technical and visual condition and comes from a clean production environment. The “med” version is particularly suitable for medical and clean-room applications.

The robot has only been used for testing and training purposes.

The system offers:

* fast and precise movements
* reliable servo technology
* compact and stable construction
* modern SEPRO Visual control system
* ideal integration into injection moulding automation systems

Suitable for:

* plastic injection moulding machines
* medical production
* clean-room applications
* automated pick & place systems
* high-speed handling applications
