İkinci el DEMAG 150-610. System NC4
Marka
DEMAG
Tip
150-610. System NC4
Model
2005
Mengene Grubu
Kapama Kuvveti
150 ton
Mengene açma mesafesi
500 mm
Kolon arası
500 x 500 mm
Kalıp bagl. yüksekliği min:
250 mm
Mengene açma mesafesi
750 mm
Plaka ölçüleri
750 x 750 mm
Enjeksiyon Grubu
Ocak çapı
45 mm
Ocak hacmi
323 cm³
Gramaj
290 gr
Enjeksiyon basıncı
1973 bar
Makine ölçü ve ağırlık
Makina ölçüleri
5.45 x 1.63 x 2.1 m
Makina Ağırlığı
7500 Kg
Robot
Marka
Wittmann
Tip
W721-0231
Model
2005
Additional Information:

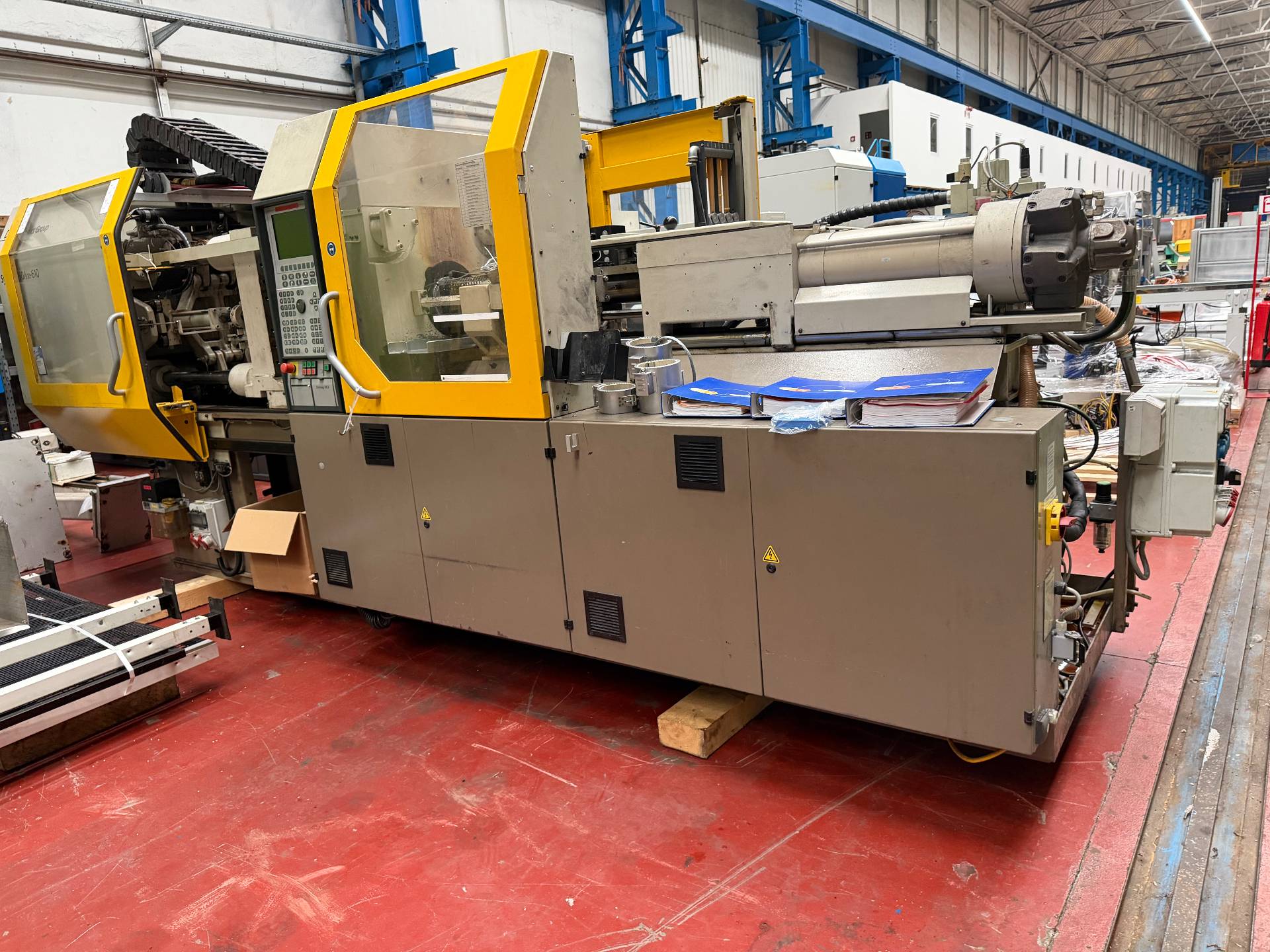

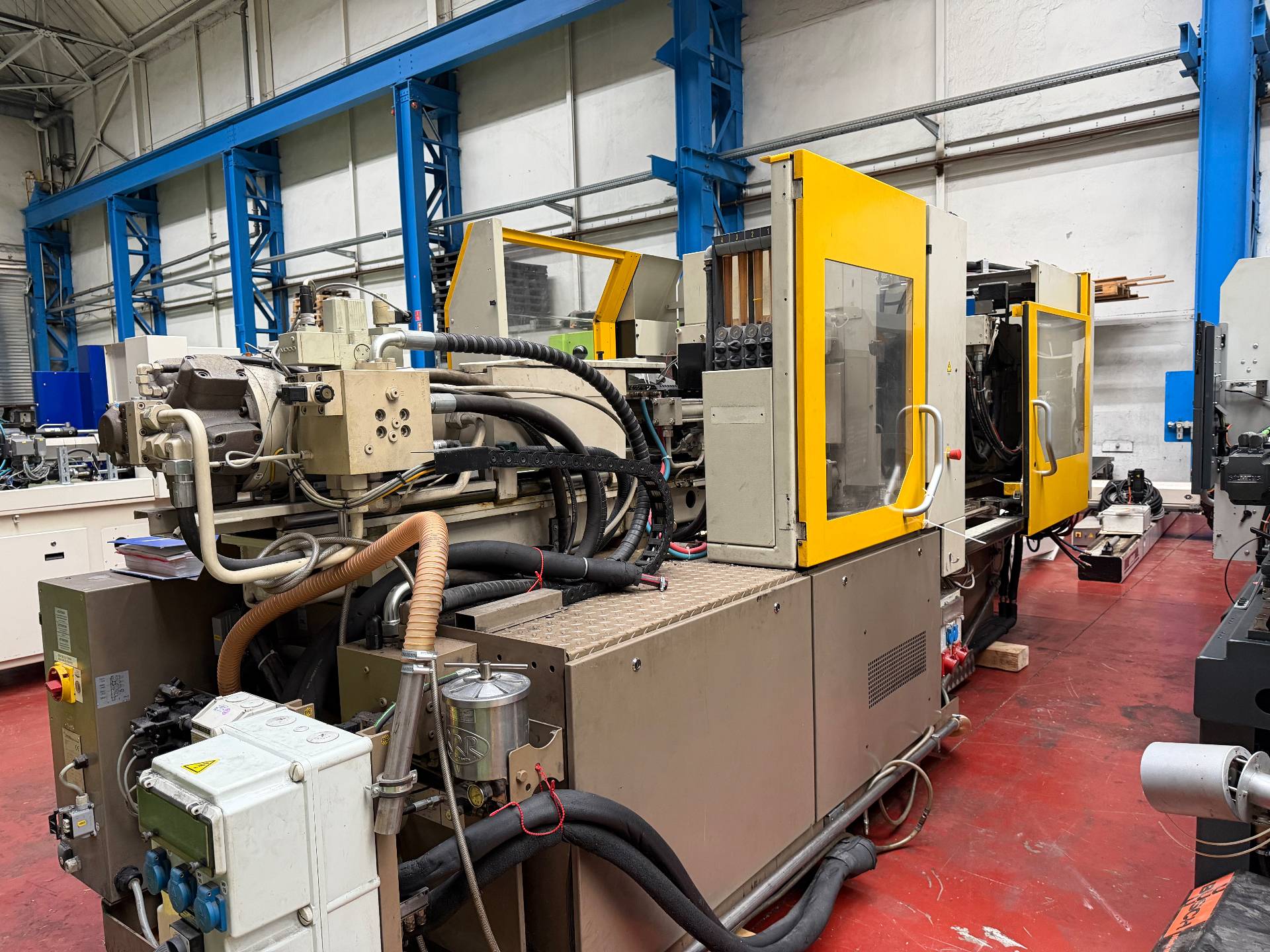

The Demag Ergotech System series hydraulic injection moulding machine is a suitable plastic injection moulding machine for technical plastic parts and automated serial production applications. Thanks to its hydraulic operating principle, the machine offers powerful and stable injection performance, while the Demag NC4 control system ensures precise process control.

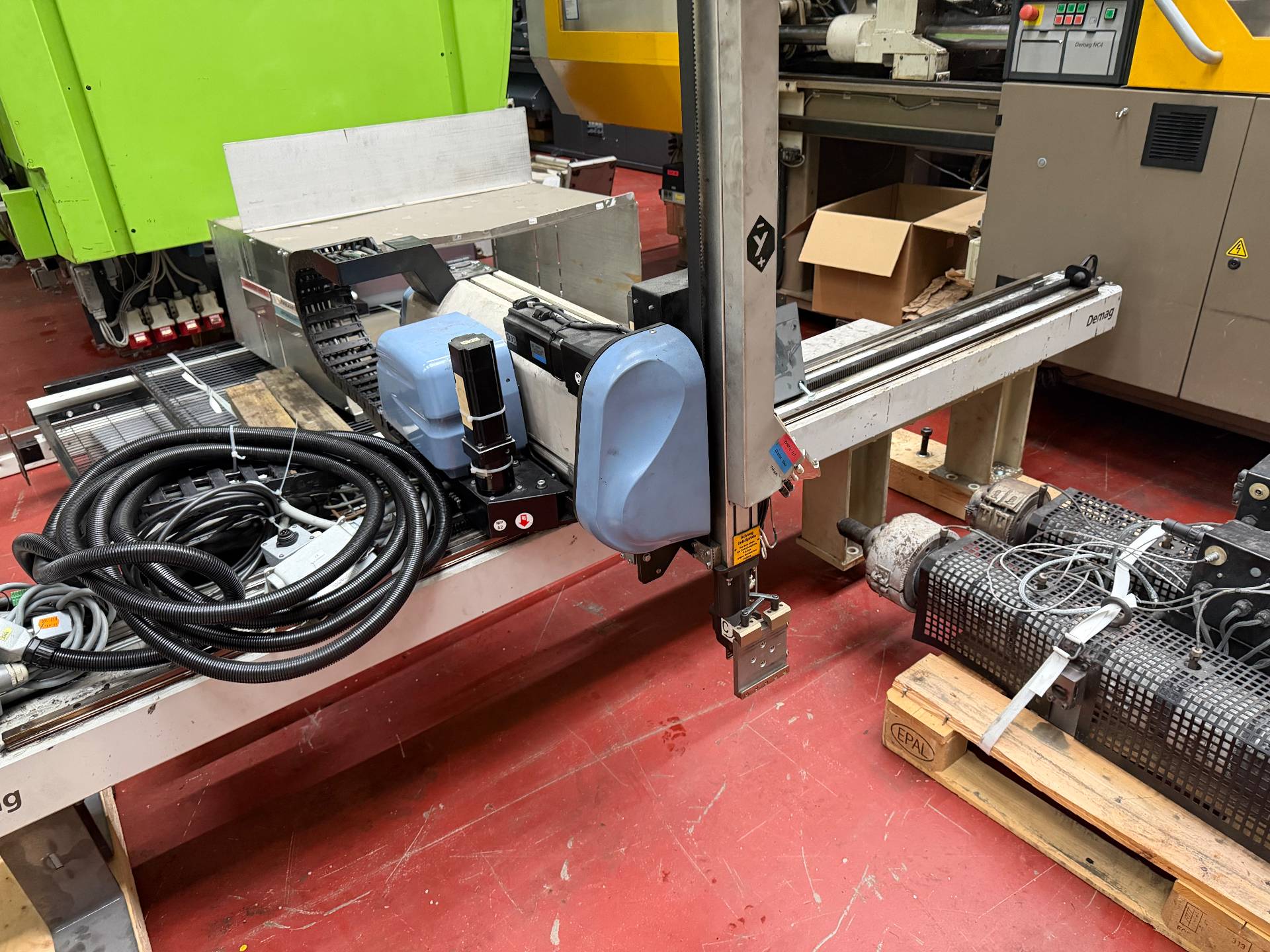

The machine is equipped with a Demag (Wittmann) DR721 linear robot.
Robot specifications:
Year of manufacture: 2005
X-axis: 550 mm
Y-axis: 1000 mm
Z-axis: 2000 mm
The robot system enables fully automatic part removal, conveyor transfer, and automated serial production processes.

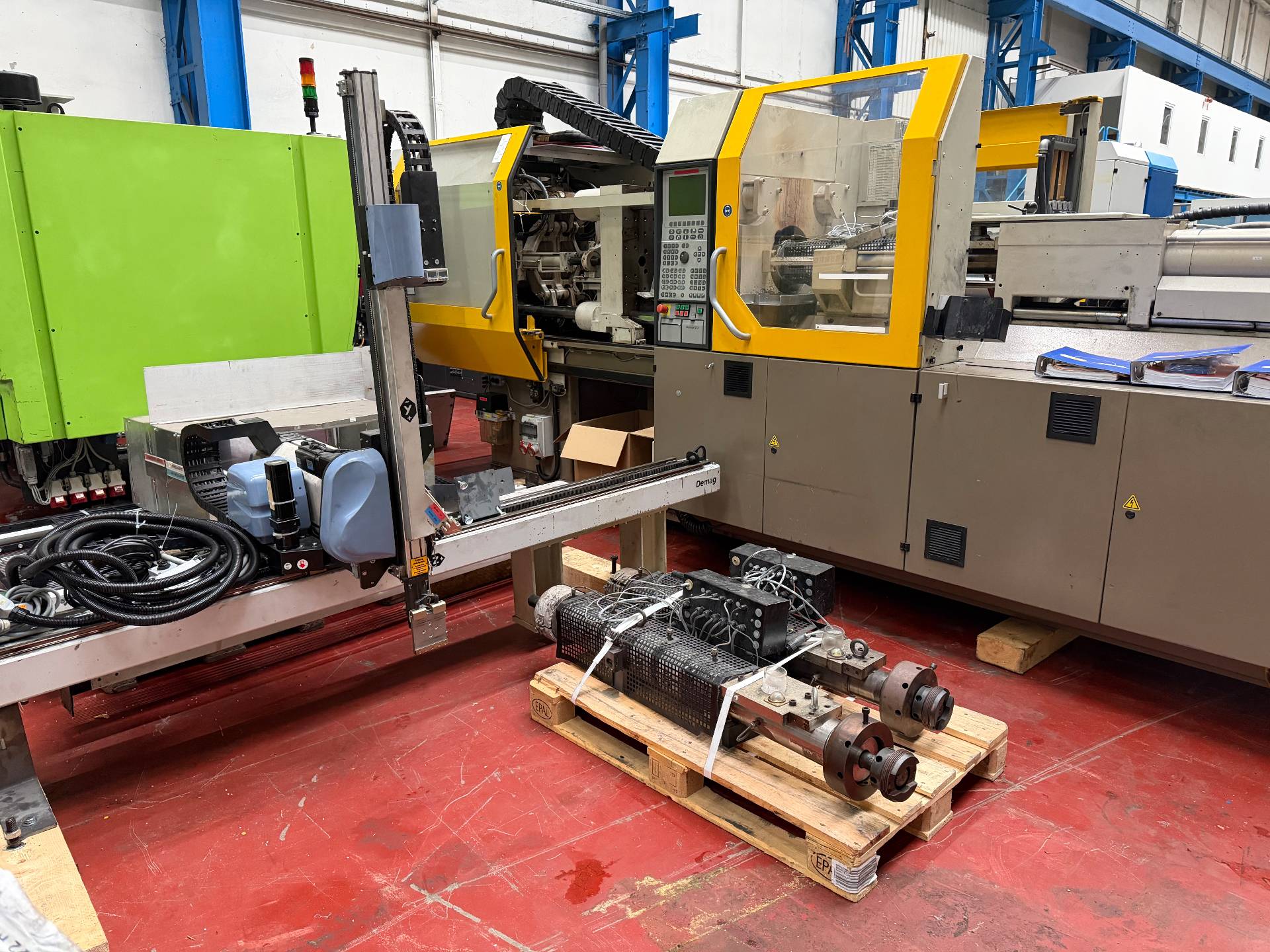

In addition, the machine comes with 2 complete spare plasticizing units / injection units (screw and barrel assemblies).
The machine was in running production and operating without problems until dismantling.
The machine is equipped with a Demag (Wittmann) DR721 linear robot.
Robot specifications:
Year of manufacture: 2005
X-axis: 550 mm
Y-axis: 1000 mm
Z-axis: 2000 mm
The robot system enables fully automatic part removal, conveyor transfer, and automated serial production processes.
In addition, the machine comes with 2 complete spare plasticizing units / injection units (screw and barrel assemblies).
The machine was in running production and operating without problems until dismantling.
